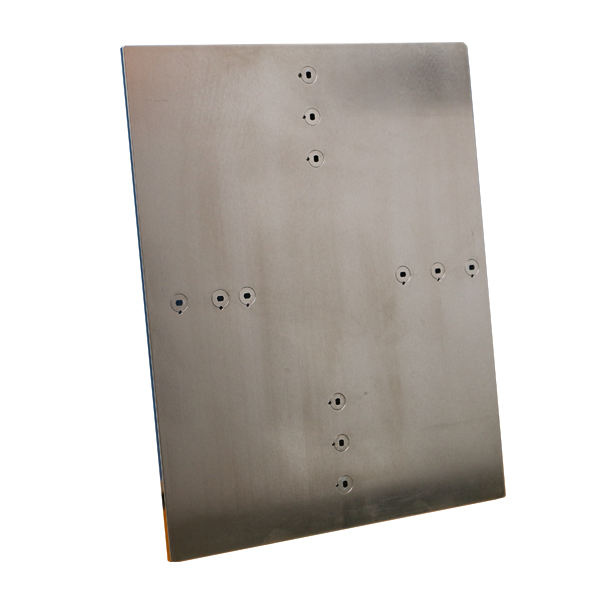

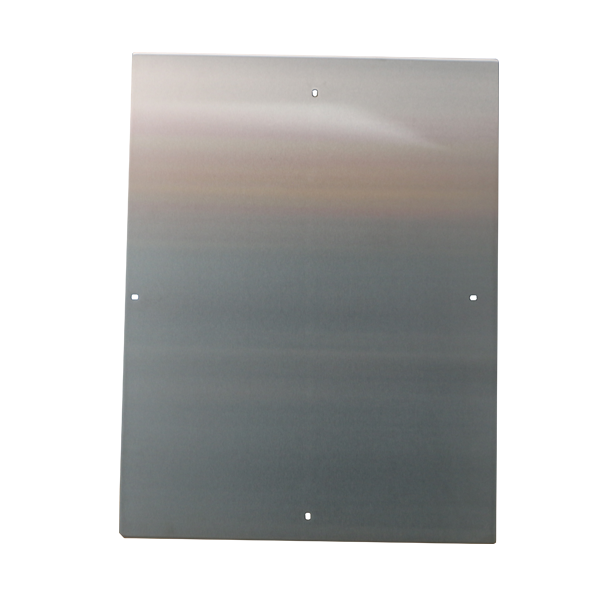

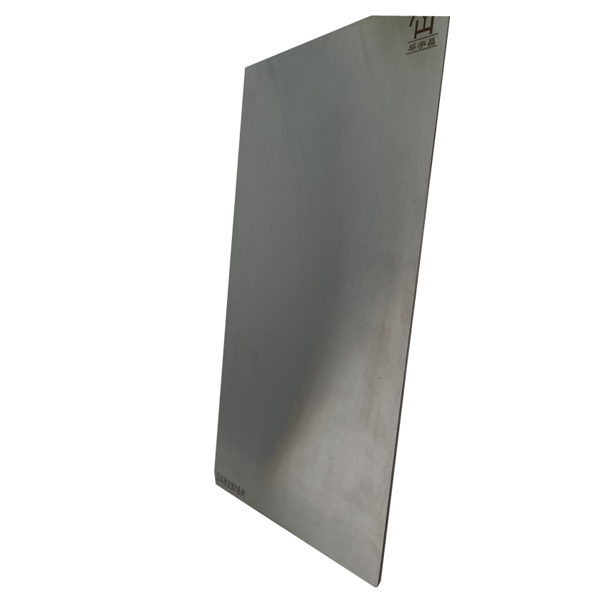

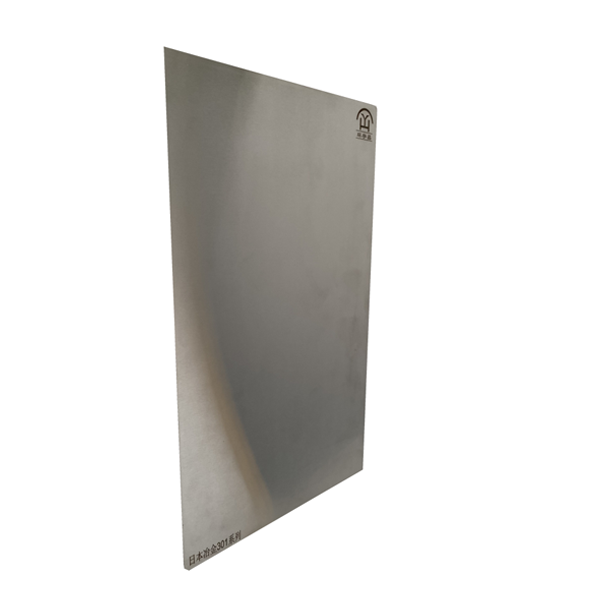

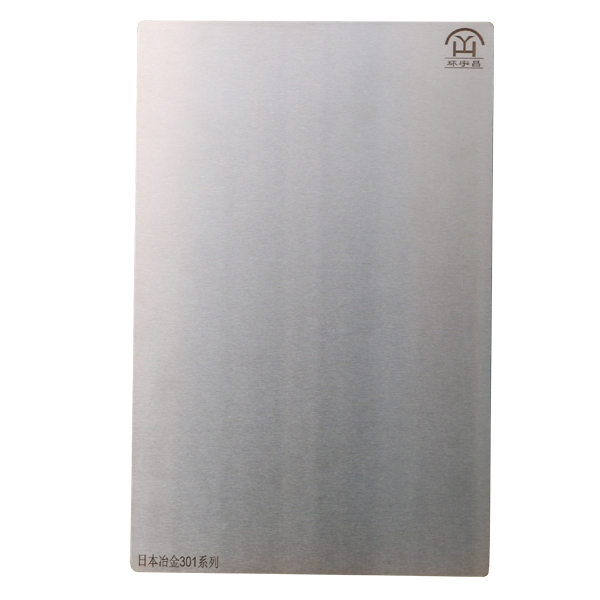

Our business scope includes laminated steel plate business, the main agent of Japan 's gold mirror steel plate ( original import ), including NAS630 & NAS301 ( high expansion coefficient ) precipitation hardening steel plate. The product has won the pursuit of CCL / PCB customers with ultra-high hardness, extremely low surface roughness and excellent thermal conductivity. At the same time, the leveling, grinding, polishing, cutting and repairing of the pressed mirror steel plate are merged.
project | NAS301 | |
Mass-Lam | Pin-Lam | |
Thickness | 1.0~1.8mm | 1.0~1.8mm |
Width | ≦1060mm | ≦1060mm |
Length | ≦3150mm | ≦3150mm |
Plate thickness tolerance | ±0.05mm | ±0.05mm |
Roughness | Ra≦0.15㎛ Rz≦1.5㎛ | Ra≦0.15㎛ Rz≦1.5㎛ |
Hole-to-hole tolerances for positioning holes | -- | +0.1/-0mm |
Standard bushing slot hole tolerances | -- | +0.05/-0mm |
Warpage degree | ≦3mm/m | ≦3mm/m |
Dimension tolerances | -0/+1mm | -0/+1mm |
Endurance | ≧205（N/mm²） | ≧205（N/mm²） |
Tensile strength | ≧520（N/mm²） | ≧520（N/mm²） |
Extensionality | ≧40% | ≧40% |
Hardness ( HRC ) | 44±2 | 44±2 |
Type | C | Si | Mn | Ni | Cr | Mo | Cu | other |
NAS301 | ≦0.15 | ≦1 | ≦2 | 6~8 | 16~18 | - | - | - |
Steel plate type | Project | Scope of application | Standard value |
NAS301 | specific gravity |
| 8.03 |
mean coefficient of thermal expansion （10-6/℃） | 0-400℃ | 15~17 |
Steel plate type | bench markW/（m*k） | 0-200℃ | 200-400℃ |
NAS301 | 17~21 | 17 | 21 |
Huanyuchang is the general agent of Japanese metallurgical steel plate in South China.
Specializing in the deep processing of PCB, CCL, IC carrier board and other industrial use of the laminated steel plate
There are two types of steel plates : ordinary steel plate ( NAS630 precipitated hardening steel plate ) and high expansion coefficient steel plate ( NAS301 precipitated hardening steel plate ).
The company has its own processing center and production team, which can provide customers with one-stop service of vehicle, sales, processing and maintenance, so as to help improve customer quality and reduce customer cost.
We sincerely, honest, high-precision technology, a serious attitude towards each customer, so that we are satisfied with both customers.
Projects undertaken :
Pressing steel plate processing, leveling, grinding, polishing, trimming, repair
Usage : Used for PCB, CCL, FCCL, FPCB, aluminum substrate and other factories.
Our Company service guarantee include the following aspects :
Service quality assurance : Ensure that service providers have the professional skills and good attitude to provide high-quality services. Timely response and solve problems, for customer problems and needs, service support personnel should respond in a timely manner and give effective solutions.
Service process assurance : Develop and implement standardized service processes to ensure service quality and efficiency. Continuously improve and optimize the service process according to customer feedback and market changes.
Service security : establish a sound information protection mechanism to protect the security and privacy of customer information. Take the necessary safety measures to ensure the personal and property safety in the service process.
After-sales service guarantee : after the end of the service, continue to provide customers with the necessary support and help to solve possible problems. Establish a customer satisfaction survey mechanism, through regular customer satisfaction surveys, to understand customer evaluation and feedback on services, in order to continuously improve service quality.
Through the above measures, the company can provide a full range of service guarantee to ensure customer satisfaction.
The company adheres to the concept of scientific and technological innovation to promote the continuous development of the company.
It has won a total of 50 patents such as inventions, utility models and appearances issued by the National Intellectual Property Office, and has obtained IS09001 : 2015, national high-tech enterprises and specialized and special new certifications. The company not only pays attention to the improvement of technical quality, but also has a strong logistics capability. The logistics network covers the world.
There are top logistics companies such as Leapfrog, DHL, SF, and Debang that cooperate at home and abroad.
They can track and monitor goods in real time and effectively. To provide a full range of protection for your goods, you can ensure that your goods are delivered safely in the shortest possible time, and have strict quality assurance to provide you with the most assured choice.
In addition, we rely on the industry 's rich experience and skills, cleverly arrange cargo loading, so that it can achieve the highest loading rate in a limited space, saving customers every point of logistics costs.
Service quality assurance : Ensure that service providers have the professional skills and good attitude to provide high-quality services. Timely response and solve problems, for customer problems and needs, service support personnel should respond in a timely manner and give effective solutions.
